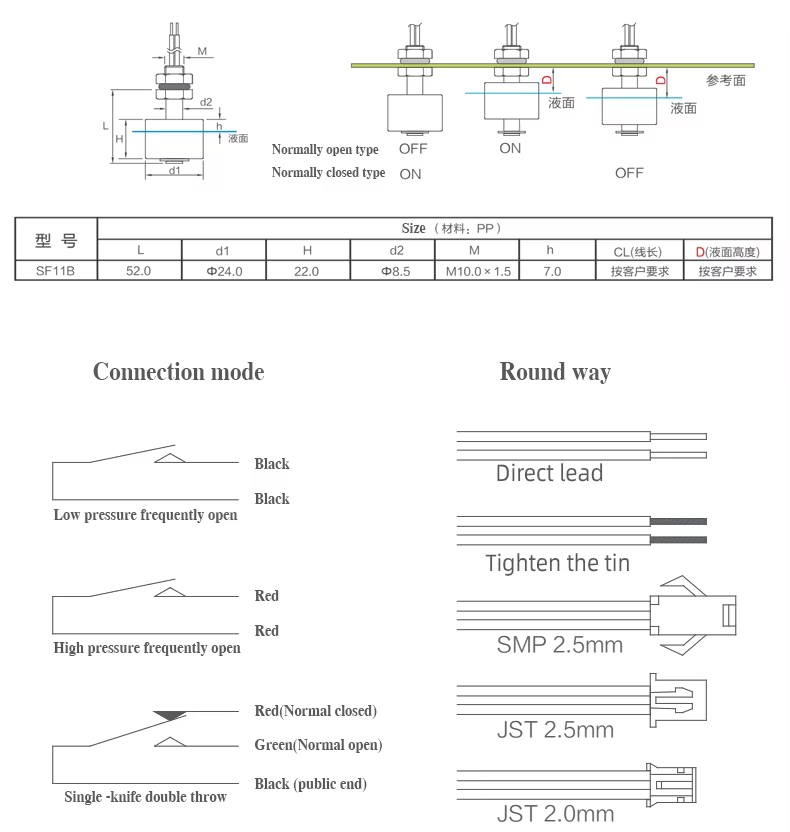

Floating ball type magnetic liquid level switch
| Type | 1 | 2 | 3 |
| Maximum switch power | 10W | 70W | 5W |
| Maximum switch voltage (DC) | 200V | 200V | 175V |
| Maximum switch voltage (AC) | 140V | 250V | 125V |
| Maximum switch current (DC) | 500mA | 1000mA | 400mA |
| Maximum switch current (AC) | 500mA | 1000mA | 280mA |
| Minimum breakdown voltage | 230V DC | 580V DC | 200V DC |
| Maximum load current | 1.75A | 2.25A | 0.5A |
| Maximum contact impedance | 100mΩ | 90mΩ | 120mΩ |
| Minimum insulation resistance | 106MΩ | 106MΩ | 106MΩ |
| Range of working temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ |
