ELEHPD manufactures cable float switches, ball and magnetic level switches for water tanks, wells, sumps and pump control — alongside circuit breakers, contactors, relays and distribution boxes for distributors, OEMs and panel builders worldwide.
Explore Float Switches Get a QuoteELEHPD manufactures cable float switches, ball float switches and magnetic level switches for clean water, sewage, sump and submersible pump duty. Typical catalogue ratings are 250 V (380 V max), 10 A, IP68, polypropylene body with PVC or rubber cable from 2 m to 15 m — exact values are confirmed per model before production.

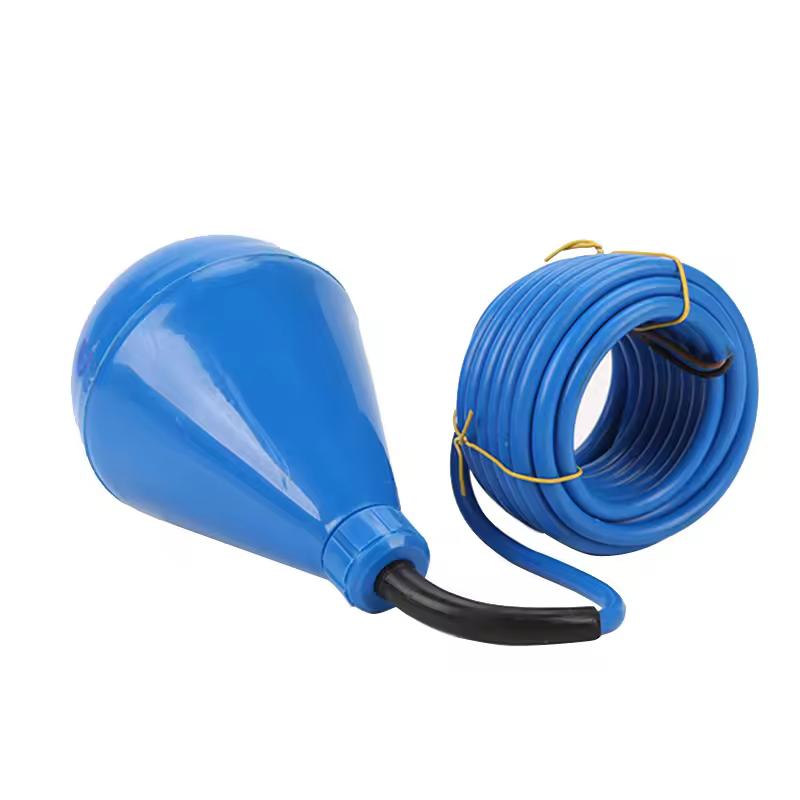

Attached to the tank wall or suspended on its own cable; switches a contactor or starts a pump directly. The standard choice for water tanks and wells.
VIEW DETAILS →Solid floating ball with the microswitch sealed inside — compact, simple and widely used for small tanks, boilers and RO units.

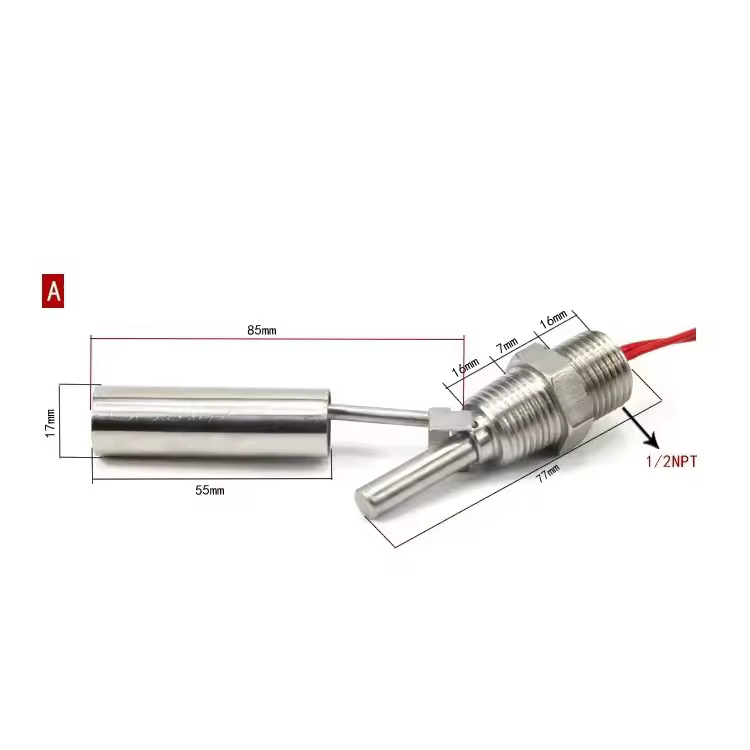

VIEW DETAILS →A reed switch driven by a magnet inside the float — no direct contact with the liquid, good for level alarms and PLC inputs.
VIEW DETAILS →Sensor heads for flow detection and multi-point level control where a simple pump start/stop is not enough.
VIEW DETAILS →Yes for small single-phase pumps whose running current sits comfortably below the contact rating — typically up to 10 A at 250 V with our standard contacts. For three-phase motors or anything larger, run the float as a signal into an AC contactor so only coil current passes through the float contacts.

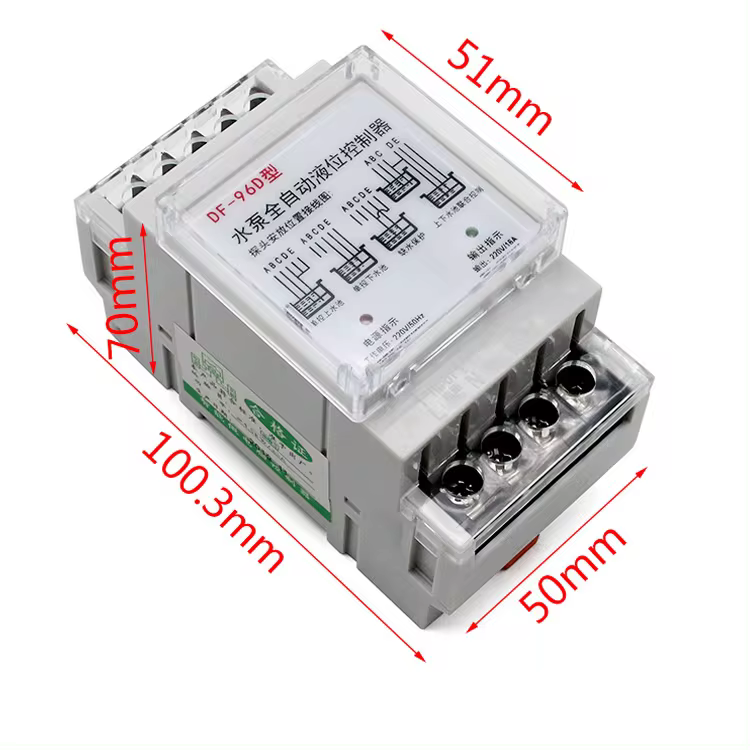

A cable float switch works in almost any liquid, including non-conductive water and sewage, and is usually enough for one-start-one-stop control. An electrode (conductivity) relay needs clean conductive water but gives several level set points from one controller — a better fit for multi-point alarms and PLC-driven systems.
Tank depth plus the hysteresis you want between the fill and empty points, with roughly 0.5–1 m extra for the tie-off. A longer cable also lowers the trip point, so pick a standard length (2, 3, 5, 10 or 15 m) rather than trimming to an odd size.
IP68 for anything permanently submerged. Our standard float series is built to IP68 with a polypropylene body and sealed PVC or rubber cable entry; confirm the exact rating for your model and medium before ordering.
Float switches are our speciality, and shipments can be combined with the rest of our low-voltage production — MCB, MCCB, RCBO, ELCB / RCCB, AC contactors, thermal relays, fuses, busbars, surge arresters, distribution boxes and power supplies — so consolidation does not cost you a second supplier.
Located in Liushi, Yueqing — the largest manufacturing base of low voltage electric equipment in China — ELEHPD combines prime production equipment with advanced inspecting and testing instruments to guarantee the quality of every product.
With prime productive equipment, advanced inspecting instruments and a galaxy of talent, we keep the principle of "quality first, customer supreme" — and have won the trust and good comments of customers all over the world.
Every batch is tested against IEC standards with advanced instruments, ensuring stable and safe performance.
Products mainly exported to Europe, Asia, America and Oceania, backed by rich foreign trade experience.
From inquiry to after-sales, our professional team provides quick response, OEM branding and technical support.
Cordially welcome customers all over the world to hold trade talks and cooperation with us — to mutually create a glorious future.
