Mini stainless steel float level switch

Mini stainless steel high temperature resistance vertically water tank float level switch

Mini stainless steel high temperature resistance vertically water tank float level switch

The main technical parameters



Project

Parameters

output contact

10W/50W

Withstand voltage

240VAC/200VDC

maximum switching current

0.5A

maximum current

1A

wire specifications

White silicone high temperature wire

operating pressure

10kg/cm

operating temperature

-10 ~ 120 °C (150 °C to 350 °C can be customized)

wetted material

SUS304/SUS316 (316L can be customized)

proportion of applic1Aation

0.75

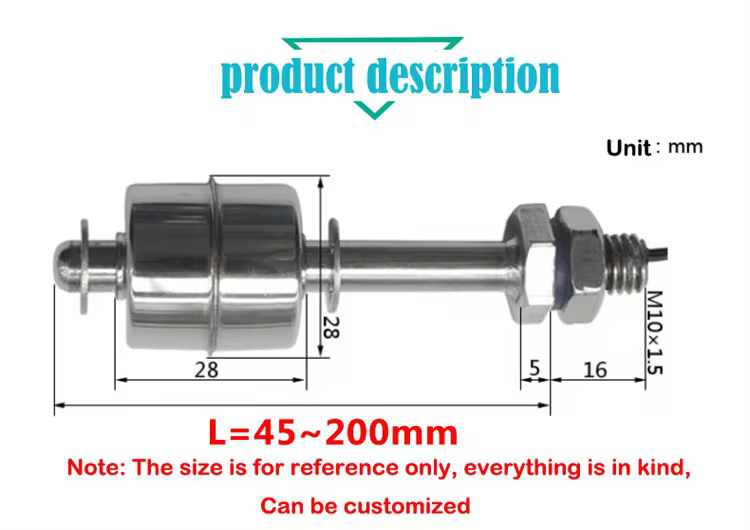

opening size

10mm (one inch pipe teeth can be customized)

Installation method

vertical installation

Insulation Resistance

>10Ω

Contact Impedance

<100mΩ

resistive load

107 times
