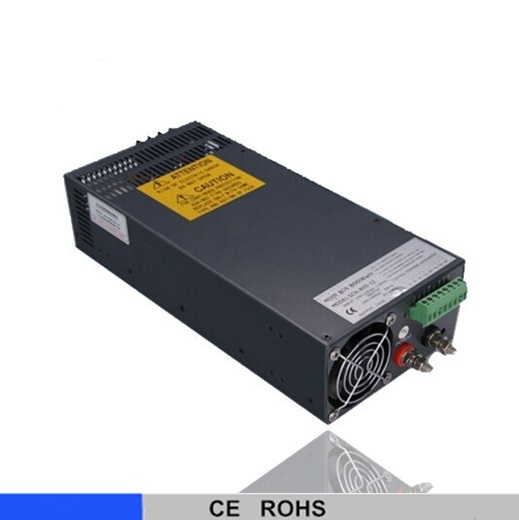

800W single output high voltage switching power supply
800W single output high voltage switching power supply
Features: ·
Universal AC input
· Small volume, low weight, high efficiency
· Protections: Short circuit/over load
· Indicator for power on/charge/normal(LED)
· 100% full load burn-in test
· Battery protection at low voltage
Details:
| Model | SCN-800-12 | SCN-800-15 | SCN-800-24 | SCN-800-48 | |
| Output | DC Voltage | 12V | 15V | 24V | 48V |
| Voltage Tolerance | ±1% | ±1% | ±1% | ±1% | |
| Rated Current | 66A | 54A | 33A | 16.6A | |
| Current Range | 0-66A | 0-54A | 0-33A | 0-16.6A | |
| Rated Power | 800W | 800W | 800W | 800W | |
| Ripple & Noise | 150mVp-p | 150mVp-p | 240mVp-p | 480mVp-p | |
| DC Voltage Adj. Range | Can adjust from 20%~100% output voltage by external control 1-5V | ||||
| Setup,Rise,Hold Time | 800ms, 50ms, 16ms at full load | ||||
| Input | Voltage Range | 90~130VAC / 180~260 VAC 47~63 Hz; selected by switch 260~370VDC | |||
| AC Current | 13A/115 VAC 8.0A/ 230 VAC | ||||
| Efficiency | 80% | 81% | 85% | 87% | |
| Inrush Current | 60A/230V | ||||
| Leakage Current | 3.5 mA/240VAC | ||||
| Protection | Over Load | 110%~135% | |||
| Protection type: Current limiting, delay shut down o/p voltage, re-power on to recover | |||||
| Over Voltage | 110%~135% | ||||
| Protection type: Shut down o/p voltage, re-power on to recover | |||||
| Over Temp. | TSW1(Power transistor) When temp. >100 °C, shut down o/p voltage, re-power on to recover | ||||
| Environment | Working Temp & Humidity | -10°C~+65°C, 20%~90 %RH | |||
| Storage Temp & Humidity | -20°C~+85°C, 10%~95 %RH | ||||
| Vibration | 10~200Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||
| Safety | Withstand Voltage | I/P-O/P, I/P-FG:1500VAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, >100MΩ/ 500VDC | ||||
| Standards | Safety Standard | Design UL1950,CSA22.2,IEC60950 | |||
| EMC Standard | Design refer to FCC Part 15 Class A | ||||
| Others | Weight | 2.3Kg; | |||
| Packing | 8pcs/24.0kg/CARTON | ||||
