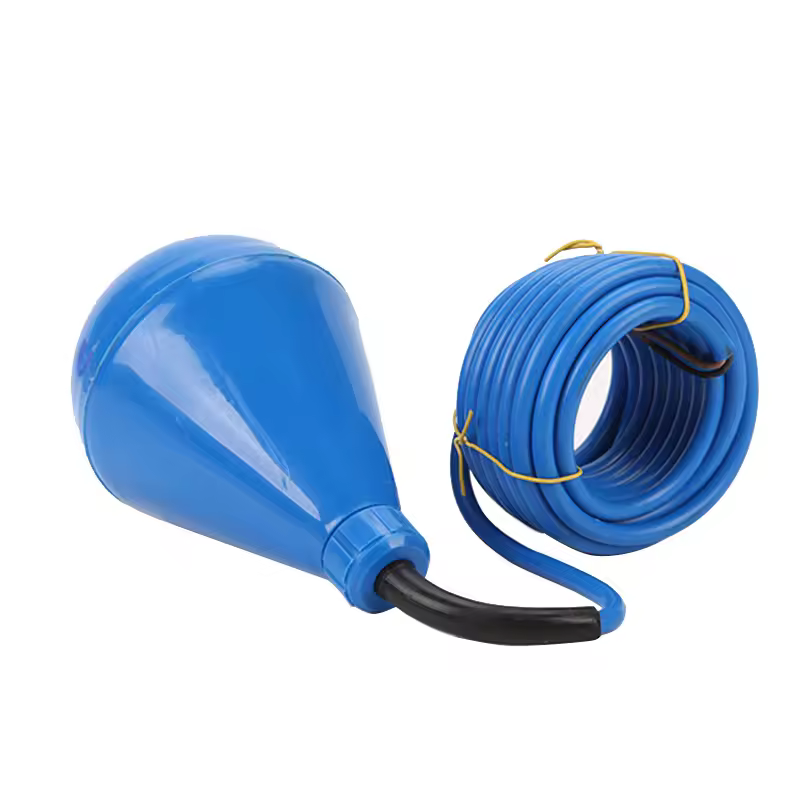

Rubber cable PP water Electrical level control float switch

CABLE SUSPENDED FLOAT OPERATED LEVEL SWITCH

It is a simple,user friendly and reliable switch for liquid level detection.By selecting an appropriate

float and cable length,it can be used for small or long range detection of liquids,with or without

impurities,sanitary applications like drinking water and also for explosive liquid or liquid in hazardous

areas.Besides,by using a number of cable floats with appropriate fixation points,it can be used for

multipoint detection.

CONSTRUCTION&OPERATION

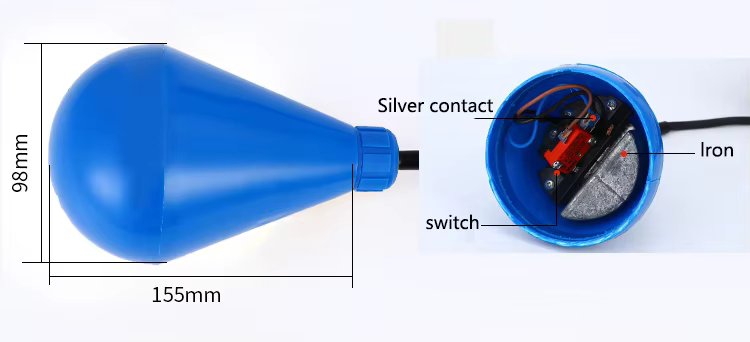

It consist of a float,integral with a 3 core electric cable.A fixed micro switch and a moving steel ball

are enclosed within the float casing.A change in liquid level causes the float to tilt up or down around

a pivot,provided in the form of an adjustable stopper or support pipe,at an angle and in the process,

actuating a steel ball to move and operate a micro switch plunger to close or open an electrical circuit

with potential free contacts,to operate auxiliary electrical devices like alarm,pump and solenoid valve.

APPLICATION

Used in sumps,Sewage,factory drainage,sludgy & soil water containing suspensions for automatic

switching of pumps,submerged pumps,solenoid valves,alarms etc.,
